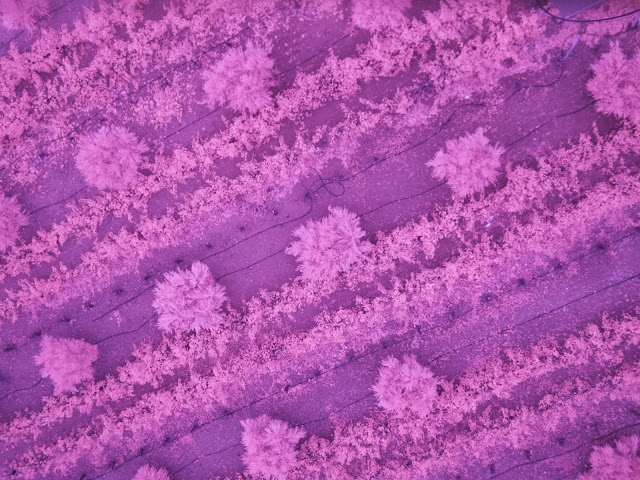

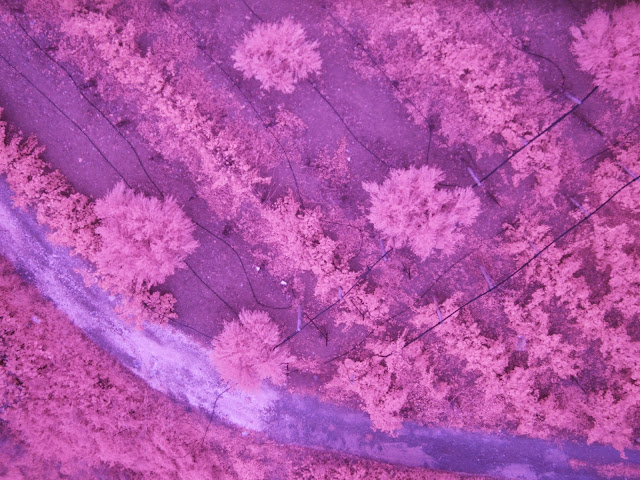

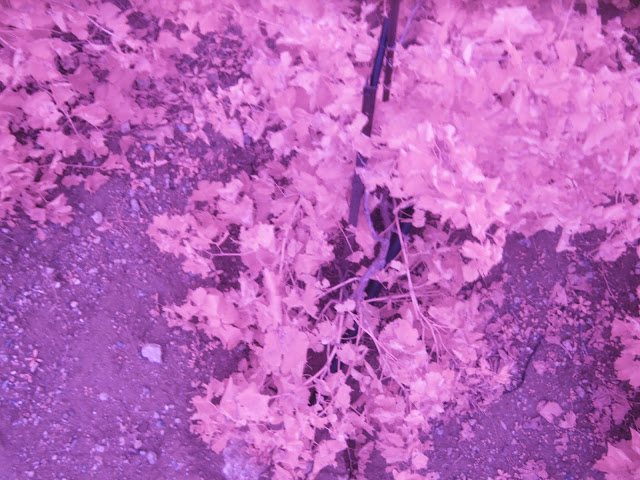

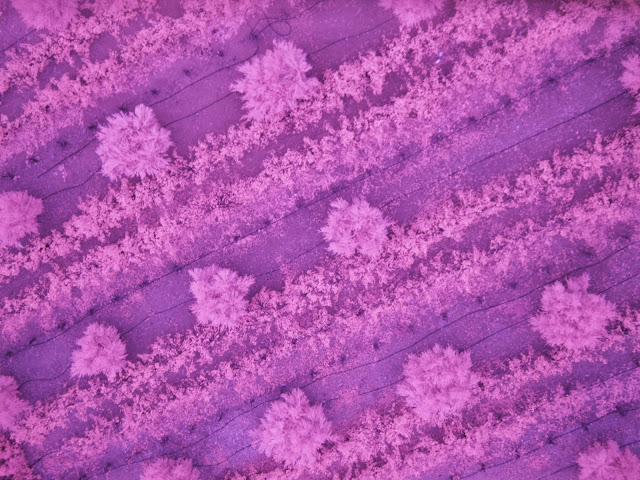

This post would be my diary in Aerial Photographing taken by my converted IR Canon A490.I will update it whenever a flight has something valuable to show. I will try to keep a single format in every diary record. There would be some basic information in the beginning and then a gallery of single shots, the stitched photo and the NDVI result.
Date: 29 October 2014
Location: aloni
Altitude: 30m
StitchingSoftware: Microsoft ICE
Camera: Canon A490 IR converted with CHDK firmware installed. I used the basic intervalometer and not tha KAP UAV specialized script. I set the interval to 2 seconds.
Description: This is my first attempt of shooting infrared aerial photos. The first photo is a stitch of the photo set derived from the Microsoft ICE software and the second one is a NDVI like photo derived from the Infragram online tool.
Notes:
When I tried to geotag the photos with the gpx log of Ardupilot I couldn’t, because for some reason the file date and time were not valid. According to the file date and time, my canon was taking 3 photos per second which is impossible with that kind of camera. In the best case scenario I was expecting 3 seconds between photos. I should check this out.
After flying the Reptile 550 and the DJI Flamewheel 450 frames I decided to move on with the Tarot 650 frame which will give me the opportunity to try bigger motors and propellers for maximizing the flight...
Welcome to my F450 Quadcopter Diary. This is my small quadcopter. I will be using it mostly for taking aerial images using my 2 Canons: A2200 and A490 (IR converted). In this diary I will be recording anything...
Created by Microsoft ICE photo stitching software by using 15 photos
This is the NDVI image created by Infragram application.
